CL10 Series Coreless Brushed DC Motor

CL1035M

•High efficiency, smooth operation, and strong stability；

•Quick response, high torque, and wide range of applications；

•Low rotational inertia, low noise, and long motor life；

Specifications

Input Voltage	7.4V	Reduction gearbox performance
Dimensions (mm)	Φ10x20L	Φ10x35L
Shaft Diameter (mm)	2	2
No load speed (rpm)	24500	855
No load current (A)	0.08	0.1
Nominal Speed (rpm)	19637	690.5
Nominal Torque (mNm)	1.3	25.8
Nominal Current (A)	0.5	0.6
Stall Torque (mNm)	8.36	190
Stall Current (A	1.8	1.8
Maximum Output Power (W)	7W	/
Maximum Efficiency (%)	75%(3.5W)	60%
Torque at Max Eff. (mNm)	1.3	25.8
Speed at Max Eff. (rpm)	19637	690.5
Life (Typical)	500hrs	500hrs
Weight (g)	7.8g	14g
Operating Temperature Range (°C)	-20℃~80℃	-20℃~80℃
Storage Temperature Range (°C)	-30℃~85℃	-30℃~85℃

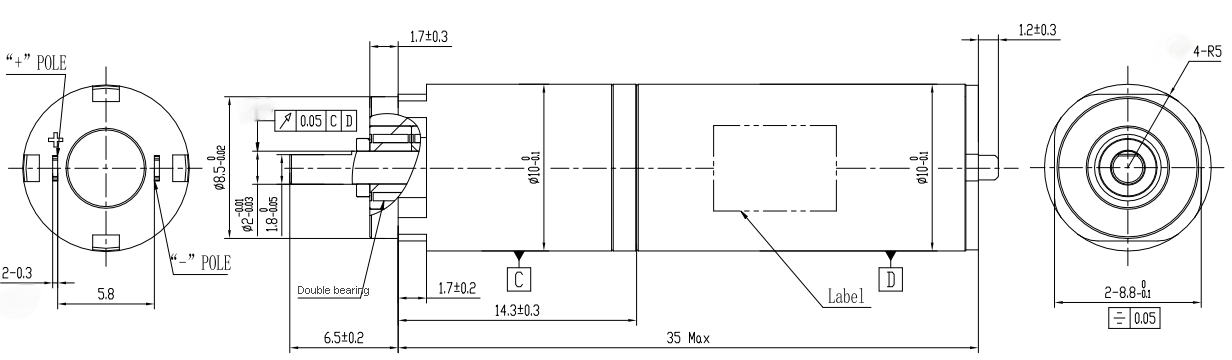

Outline Drawing

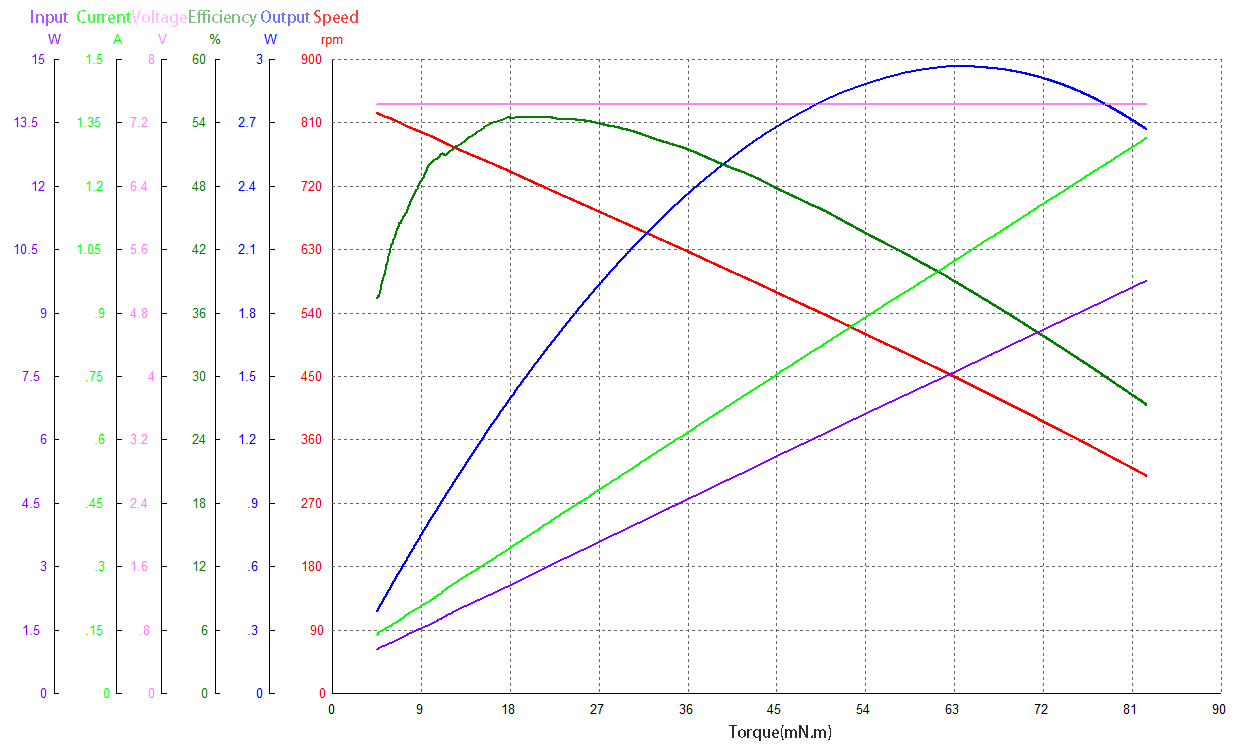

Performance Curves

Application

: Medical pump motor
With the development of science and technology and the improvement of medical level, the function of medical equipment will be more and more advanced, and its product structure will be adjusted continuously, and its function will be more diversified. The BL32 brushless motor developed by our company for this purpose has the characteristic of ‘small and precise’, and can be applied in many kinds of medical devices.
+

: Coreless DC motor for humanoid robot
As the most important end-effector for humanoid robots, dexterous hands play a key role in many scenarios requiring delicate operations, and are essential for humanoid robots to realize complex movements. A high-quality dexterous hand has strict requirements for motor performance, including high-precision control, miniaturization and lightweight, high reliability and long life and other characteristics. The coreless DC motor, with its advantages of high-precision control, miniaturization and lightweight, high reliability and long service life, is the key to achieving high-precision and fast-response motion control for dexterous robots.
+
