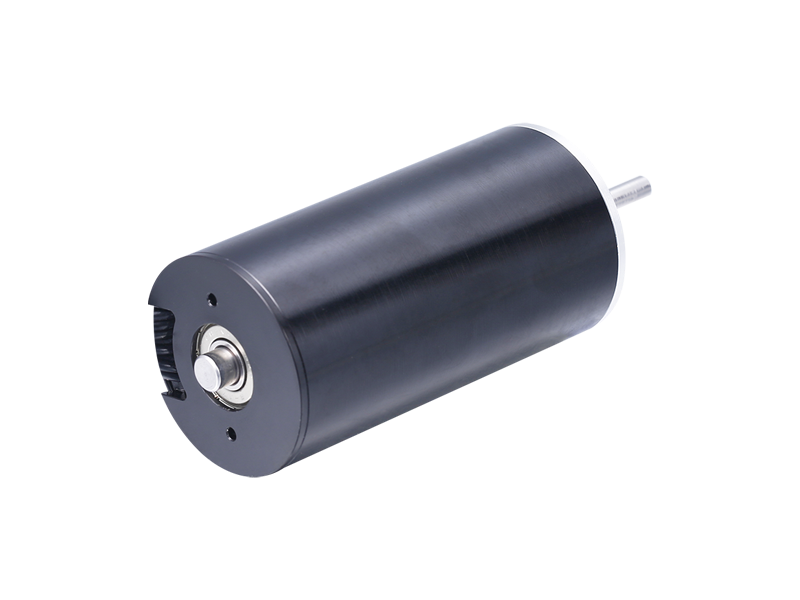

CB2238 Series Slotless Brushless DC Motor

CB2238N

•Adopt integrated design with high integration and reliability；

•Stable operation and Strong overload capacity，high efficiency and high power density

•Lightweight design，low noise and vibration, long life；

Specifications

Input Voltage	9V DC	12V DC	18V DC	24V DC
Dimensions(mm)	Φ22x38.5L	Φ22x38.5L	Φ22x38.5L	Φ22x38.5L
Shaft Diameter(mm)	Ф3	Ф3	Ф3	Ф3
No load speed(rpm)	15455	14482	15331	15482
No load current(A)	0.12	0.09	0.06	0.05
Nominal Speed(rpm)	11080	10884	11234	11329
Nominal Torque(mNm)	4	4	4	4
Nominal Current(A)	0.8	0.6	0.4	0.3
Stall Torqu(mNm)	14	16	14.9	14.8
Stall Current(A)	2.69	2.11	1.39	1.05
Maximum Output Power(W)	5.7	6.1	6.0	6.0
Maximum Efficiency(%)	65.1	68.1	65.8	66.0
Torque at Max Eff.(mNm)	2.4	2.5	2.5	2.5
Speed at Max Eff.(rpm)	12835	12232	12733	12867
Life（Typical）	≥2000hrs	≥2000hrs	≥2000hrs	≥2000hrs
Weight(g)	80-90	80-90	80-90	80-90
Operating Temperature Range(°C)	-10 to 70	-10 to 70	-10 to 70	-10 to 70
Storage Temperature Range(°C)	-20 to 70	-20 to 70	-20 to 70	-20 to 70

Performance Data

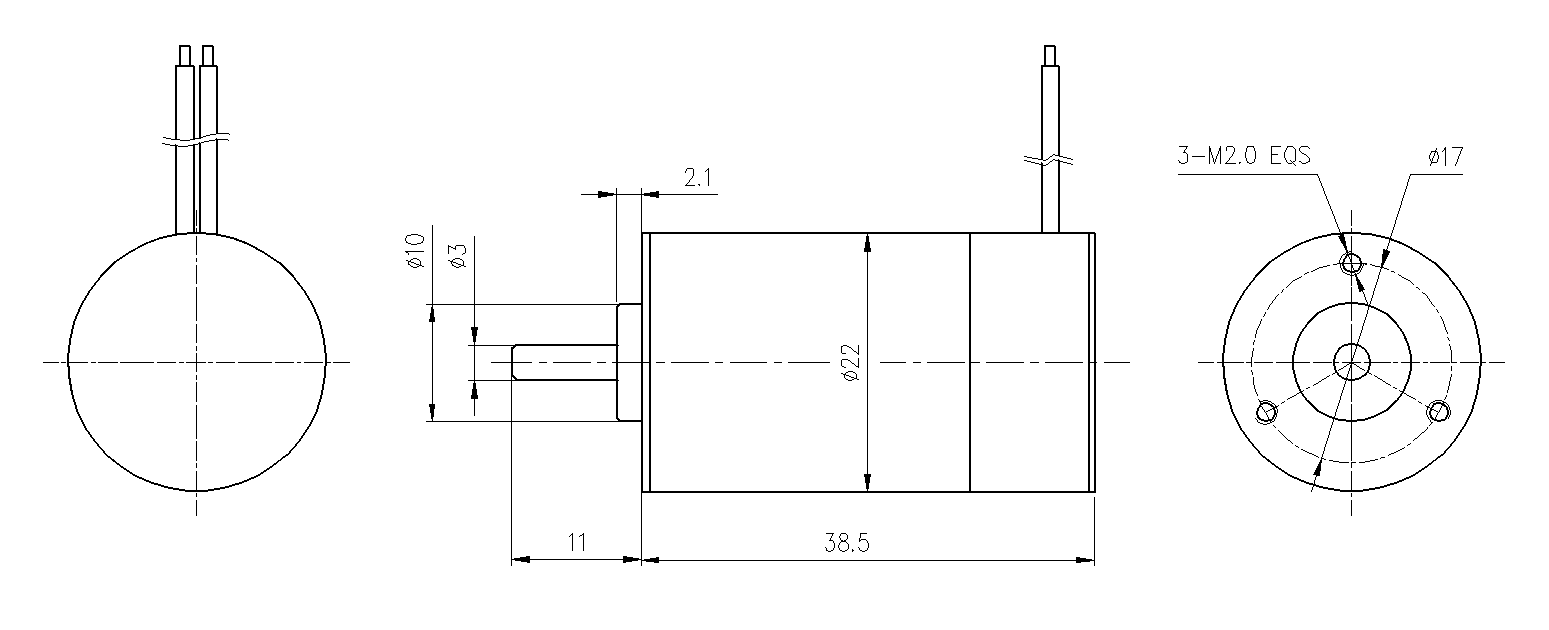

Outline Drawing

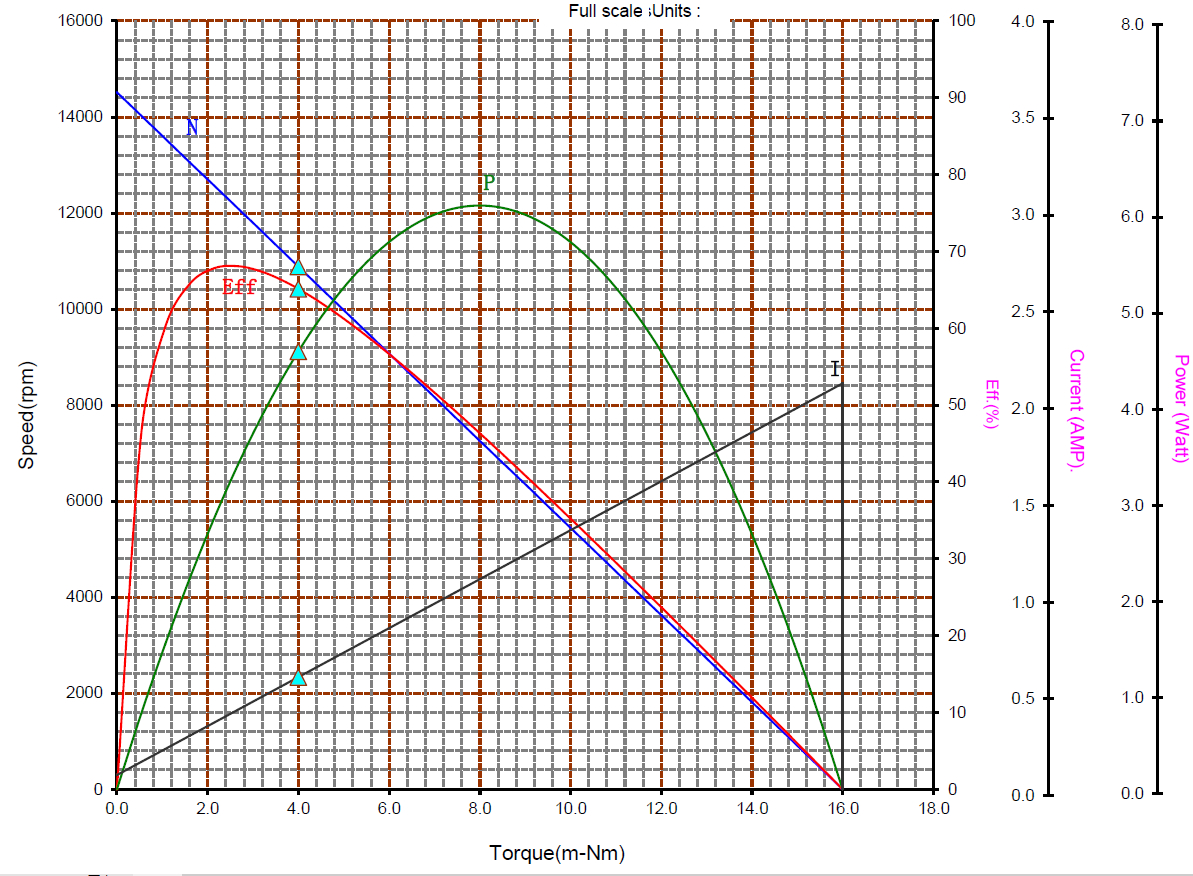

Performance Curves
