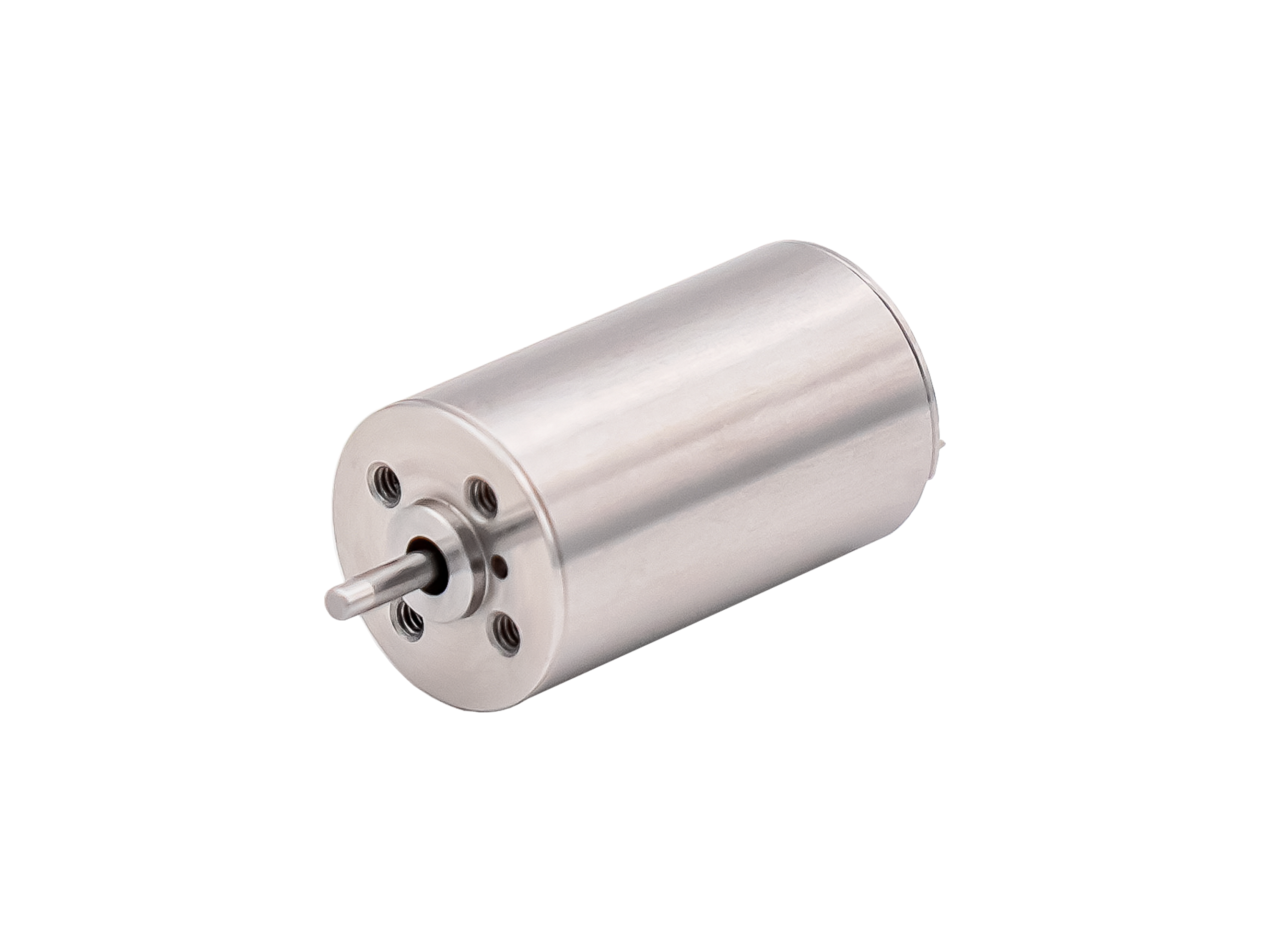

CB13 Series Slotless Brushless DC Motor

CB1322N

•Adopt integrated design with high integration and reliability；

•Stable operation and Strong overload capacity，high efficiency and high power density

•Lightweight design，low noise and vibration, long life；

Specifications

Input Voltage	12V DC	24V DC
Dimensions(mm)	φ13x22	φ13x22
Shaft Diameter(mm)	Ф1.5/Ф2	Ф1.5/Ф2
No load speed(rpm)	31000	31097
No load current(mA)	158	80
Nominal Speed(rpm)	22300	21254
Nominal Torque(mNm)	3	3
Nominal Current(A)	0.99	0.50
Stall Torque(mNm)	10.7	9.48
Stall Current(A)	3.16	1.42
Maximum Output Power(W)	5.2	4.79
Maximum Efficiency(%)	61.45	59.31
Torque at Max Eff.(mNm)	1.97	1.82
Speed at Max Eff.(rpm)	25332	25133
Life（Typical）	＞2000hrs	＞2000hrs
Weight(g)	15-20	15-20
Operating Temperature Range(°C)	-10 to 70	-10 to 70
Storage Temperature Range(°C)	-20 to 70	-20 to 70

Outline Drawing

Performance Curves

Application

: Medical pump motor
With the development of science and technology and the improvement of medical level, the function of medical equipment will be more and more advanced, and its product structure will be adjusted continuously, and its function will be more diversified. The BL32 brushless motor developed by our company for this purpose has the characteristic of ‘small and precise’, and can be applied in many kinds of medical devices.
+

: Coreless DC motors for industrial robots
Industrial robot end-effector is an automated equipment component used for precision assembly, handling and other operations in industrial production. It is commonly used in various industrial production scenarios, and is a key component in realizing industrial automation production.As the core component of the industrial robot end-effector, the quality of the motor directly affects the use of the equipment. A good industrial robot end-effector requires motors with the following characteristics: high precision and rigidity, high load and high torque, high reliability and long life.
+
