•Small size, light weight；
• Using rare earth magnetic steel, high power density, high efficiency；
• The rotor is light and the braking time is short；
Data download Back to list
| Input Voltage | 20.5V DC |

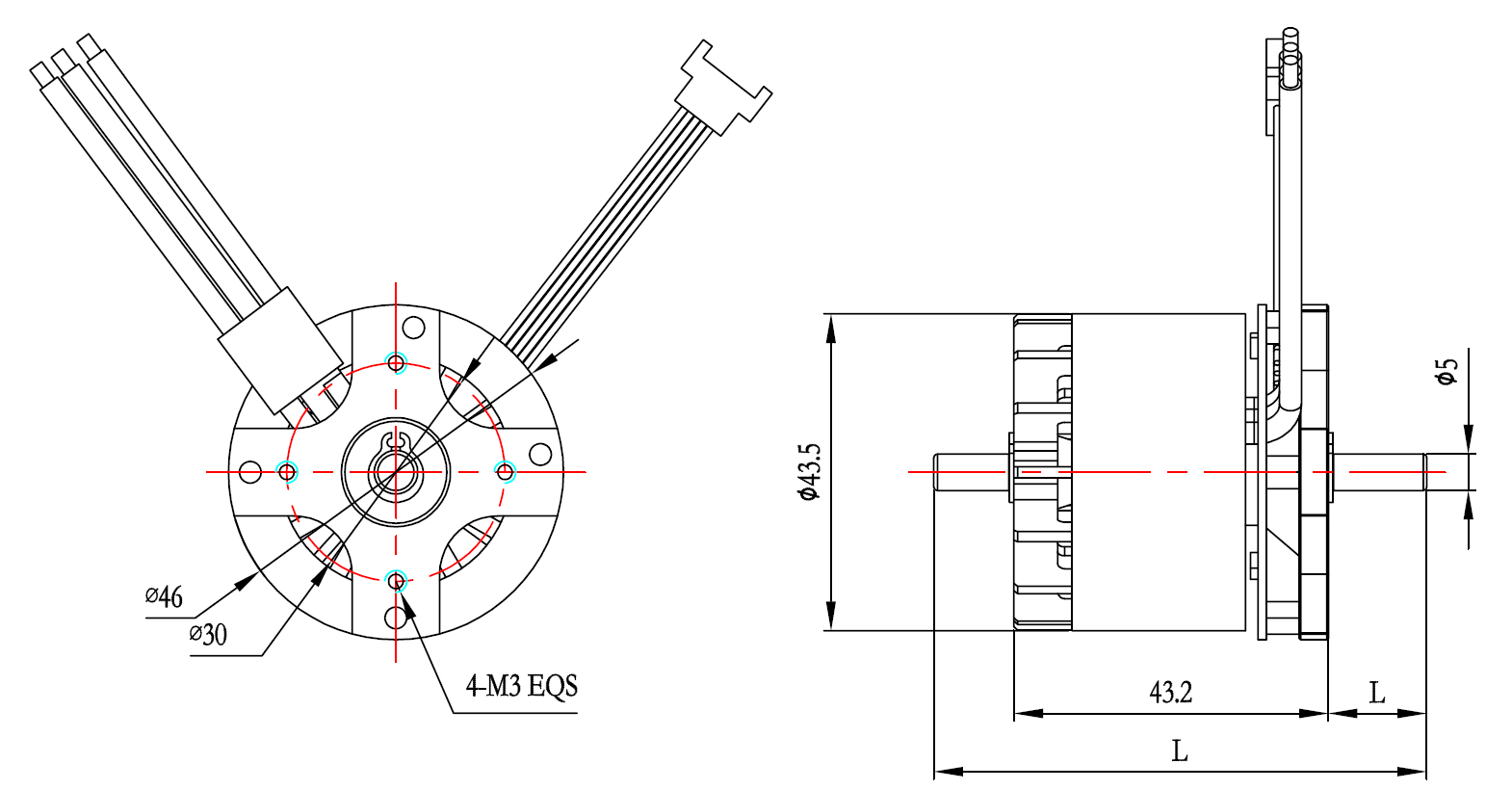

| Dimensions(mm) | Φ46×67.7 |
| Shaft Diameter(mm) | Ф5 |
| No Load Speed(rpm) | 19817 |
| No Load Current(A) | 5.5 |
| Rated Torque(Nm) | 17651 |
| Rated Torque (rpm) | 0.3 |
| Rated Current(A) | 32.7 |
| Stall Torque(Nm) | 2.774 |
| Stall Current(A) | 259 |
| Maximum Output Power(W) | 1430 |
| Maximum Efficiency(%) | 83.17 |
| Life（Typical） | 100hrs |
| Weight(g) | 217.8 |
| Operating Temperature Range(°C) | -15 to 45 |
| Storage Temperature Range(°C) | -15 to 45 |
In recent years, the power tools industry has shown rapid development, in the domestic power tools market, the number of sales of domestic power tools has accounted for 90% of the total sales, while a variety of imported brand-name products accounted for only 10% of the market share. In the foreign power tools market, the proportion of China's manufacturing continues to expand, China has become the world's leading exporter of power tools and global power tools production base, the industry has great potential for development.
