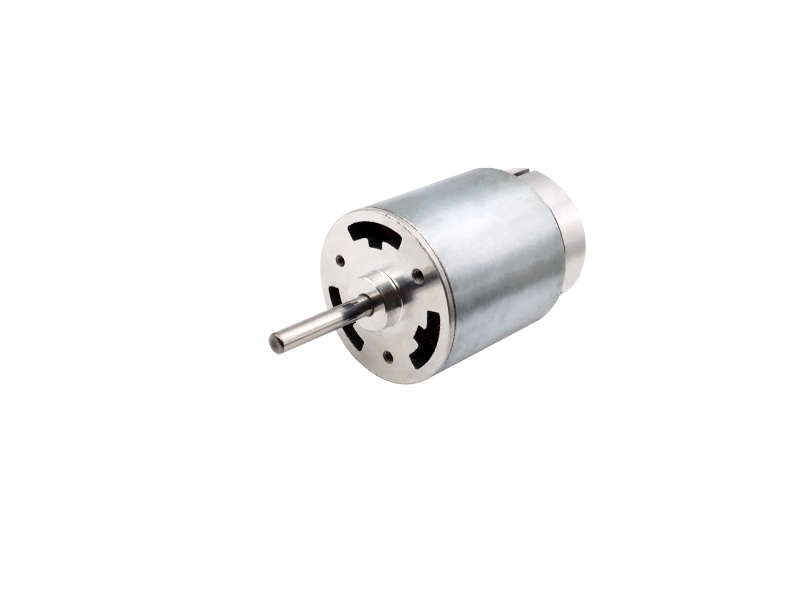

•Compact design、Lightweight、Long service life；
• High power density and torque、High cost performance and high efficiency；
• High structural strength, strong and durable、 High reliability、Low vibration and noise；
Data download Back to list
|
Input Voltage |
17.2V DC |
24V DC |
|
Dimensions(mm) |
Φ35x45.7L |
Φ35x45.7L |
|
Shaft Diameter(mm) |
Φ4 |
Φ4 |
|
No Load Speed(rpm) |
4300 |
4200 |
|
No Load Current(A) |
0.48 |
0.30 |
|
Nominal Speed(rpm) |
2890 |
2800 |
|
Nominal Torque(Nm) |
0.37 |
0.37 |
|
Nominal Current(A) |
9.2 |
6.5 |
|
Stall Torque
(Nm) |
1.132 |
1.096 |
|
Stall Current(A) |
27.6 |
18.9 |
|
Maximum Output Power(W) |
126.6 |
120.7 |
|
Maximum Efficiency(%) |
84.3 |
83.9 |
|
Torque at Max Eff.(Nm) |
0.125 |
0.123 |
|
Speed at Max Eff.(rpm) |
3800 |
3734 |
|
Life（Typical） |
≥330 hrs |
≥330 hrs |
| Weight(g) |
160 |
160 |
|
Operating Temperature Range(°C) |
-10 to 40 |
-10 to 40 |
|
Storage Temperature Range(°C) |
-40 to 50 |
-40 to 50 |
