CL3553 Series Coreless Brushed DC Motor

CL3553

•High efficiency, smooth operation, and strong stability；

•No groove torque, low vibration, low noise, low starting torque；

•Low rotational inertia, low noise, and long motor life；

Data download Back to list

Specifications

Input Voltage	12V DC	18V DC	24V DC
Dimensions(mm)	Φ35x53L	Φ35x53L	Φ35x53L
Shaft Diameter(mm)	Ф6	Ф6	Ф6
No load speed(rpm)	5500	5503	5505
No load current(A)	0.150	0.140	0.106
Nominal Speed(rpm)	3301	3331	3351
Nominal Torque(mNm)	39.2	39.2	39.2
Nominal Current(A)	1.58	1.05	0.79
Stall Torque(mNm)	98.07	99.33	100.19
Stall Current(A)	3.6	2.5	1.9
Maximum Output Power(W)	14	14.3	14.4
Maximum Efficiency(%)	83.84	84.16	84.38
Torque at Max Eff.(mNm)	19.09	19.24	19.35
Speed at Max Eff.(rpm)	4428	4437	4442
Life（Typical）	1000hrs	1000hrs	1000hrs
Weight(g)	350	350	350
Operating Temperature Range(°C)	-10 to 70	-10 to 70	-10 to 70
Storage Temperature Range(°C)	-20 to 70	-20 to 70	-20 to 70

Performance Data

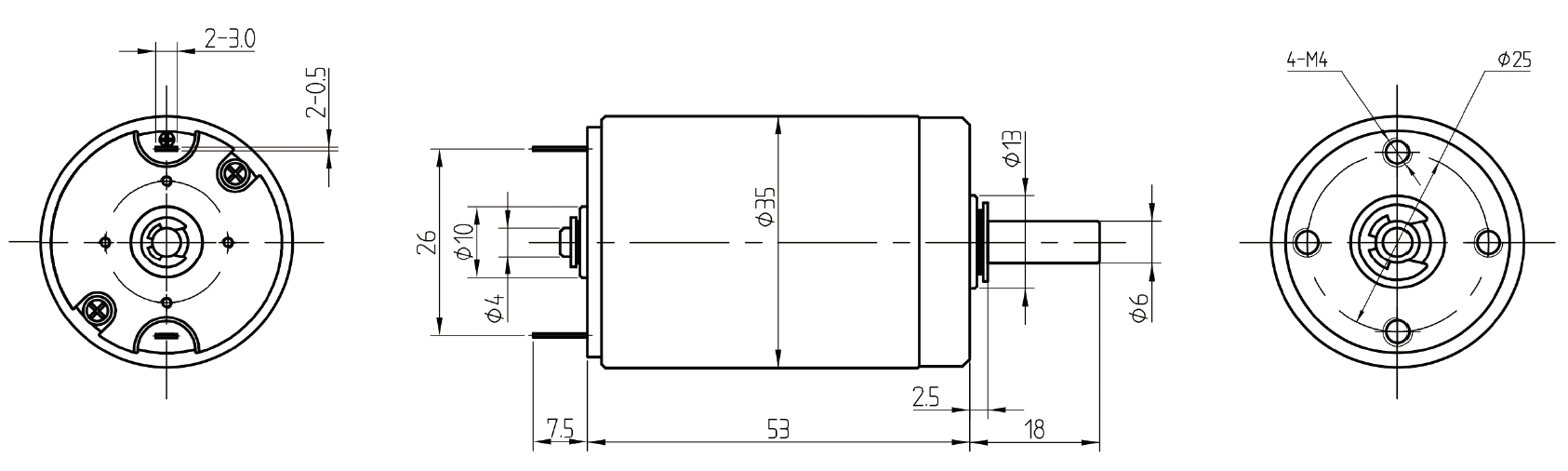

Outline Drawing

Performance Curves

Application

: Electric curtain Solution
With the development of smart home, ‘electric curtains’ gradually into the high-end hotels, high-end home life, a key to open and close, voice control of the senior sense, in the daily busy life, to bring people a comfortable and convenient feeling. Become a standard configuration of many five-star hotels, villas, well-decorated flats.
+
