•Adopt integrated design with high integration and reliability；
•Stable operation and Strong overload capacity，high efficiency and high power density；
•Lightweight design，low noise and vibration, long life；
Data download Back to list
| Input Voltage | 48V DC |

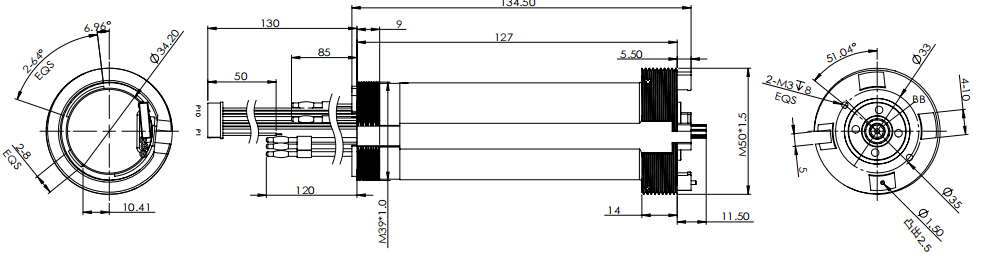

| Dimensions (mm) | Φ50x139.8L |
| Shaft Diameter (mm) | Φ6 |

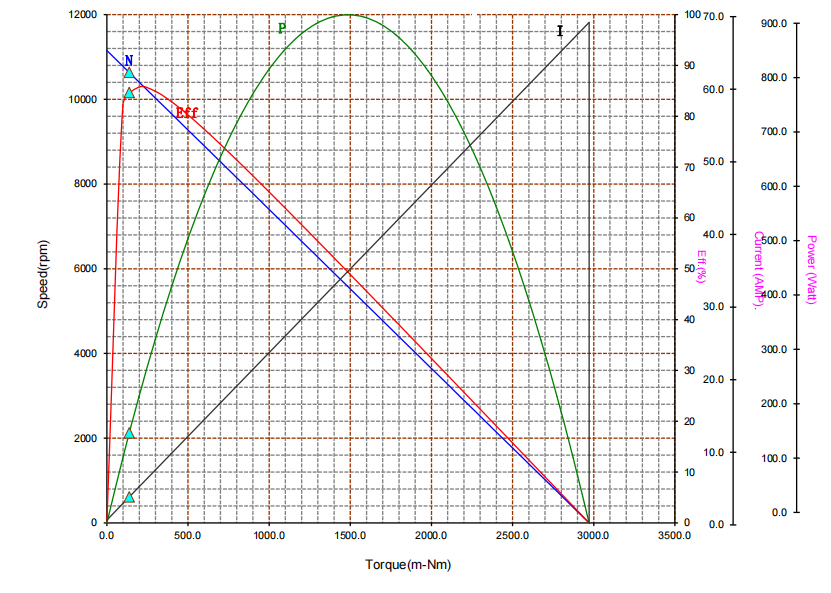

| No load speed (rpm) | 11266 |
| No load current (A) | 0.4 |
| Nominal Speed (rpm) | 10635 |
| Nominal Torque (mNm) | 138 |
| Nominal Current (A) | 3.8 |
| Stall Torque (mNm) | 2971.6 |
| Stall Current (A) | 72.86 |
| Maximum Output Power (W) | 867.6 |
| Maximum Efficiency (%) | 85.76 |
| Torque at Max Eff. (mNm) | 209.1 |
| Speed at Max Eff. (rpm) | 10368 |
| Life (Typical) | ＞10000hrs |
| Weight (g) | 621.6 g |
| Operating Temperature Range (°C) | -10 to 70 |
| Storage Temperature Range (°C) | -20 to 60 |
