•Adopt integrated design with high integration and reliability；
•Stable operation and Strong overload capacity，high efficiency and high power density；
•Lightweight design，low noise and vibration, long life；
Data download Back to list
| Input Voltage | 12V DC |

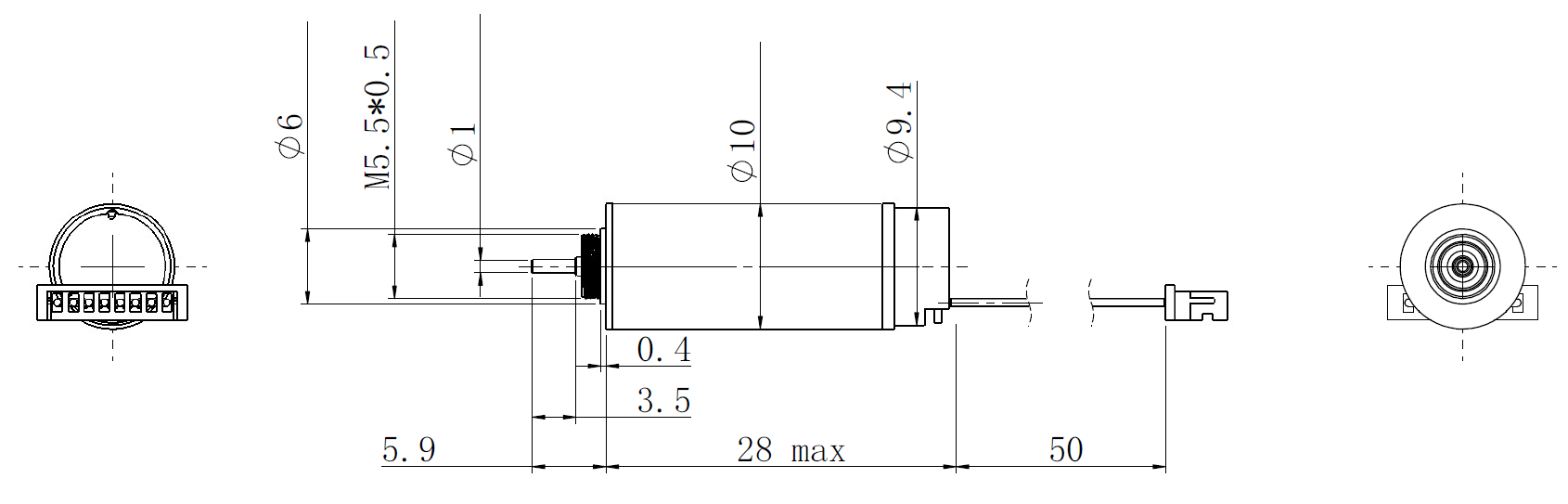

| Dimensions (mm) | Φ10x28 |
| Shaft Diameter (mm) | Ф1 |

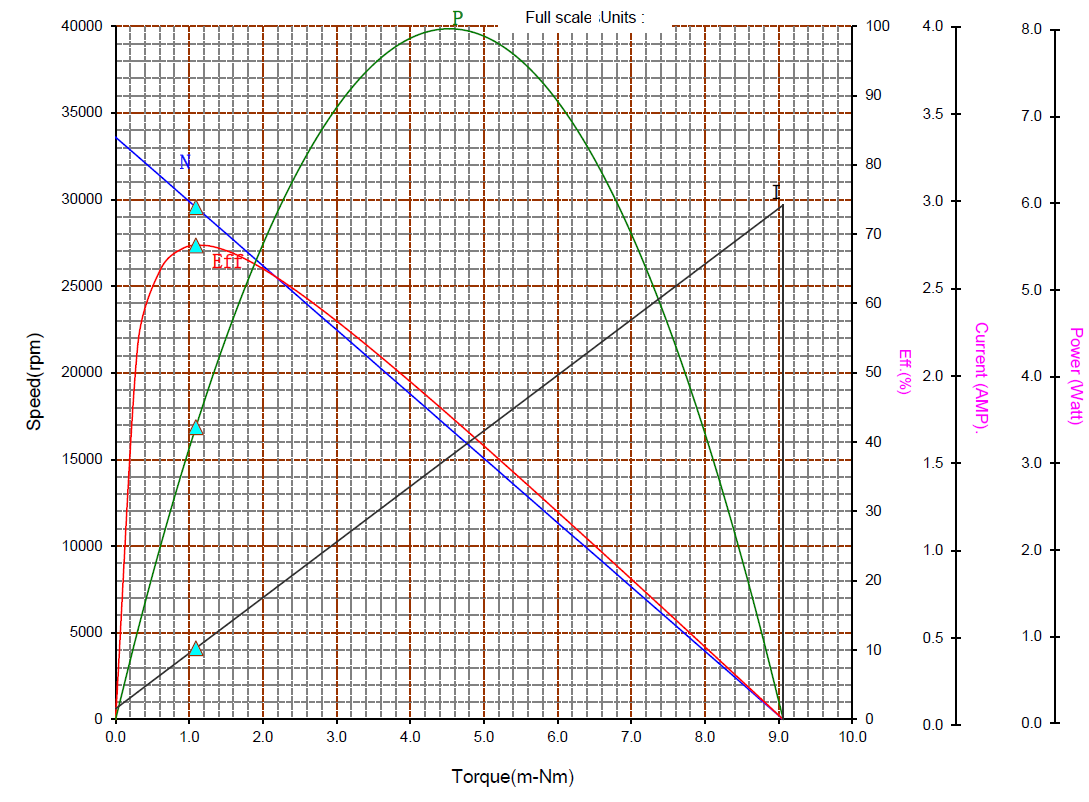

| No load speed (rpm) | 33598 |
| No load current (mA) | 61 |
| Nominal Speed (rpm) | 29568 |
| Nominal Torque (mNm) | 1.09 |
| Nominal Current (A) | 0.41 |
| Stall Torque (mNm) | 9.06 |
| Stall Current (A) | 2.97 |
| Maximum Output Power (W) | 7.97 |
| Maximum Efficiency (%) | 68.4 |
| Torque at Max Eff. (mNm) | 1.14 |
| Speed at Max Eff. (rpm) | 29374 |
| Life (Typical) | ≥2000hrs |
| Weight (g) | 15-20 |
| Operating Temperature Range (°C) | -20 to 80 |
| Storage Temperature Range (°C) | -20 to 80 |
With the development of science and technology and the improvement of medical level, the function of medical equipment will be more and more advanced, and its product structure will be adjusted continuously, and its function will be more diversified. The BL32 brushless motor developed by our company for this purpose has the characteristic of ‘small and precise’, and can be applied in many kinds of medical devices.
+
As the most important end-effector for humanoid robots, dexterous hands play a key role in many scenarios requiring delicate operations, and are essential for humanoid robots to realize complex movements. A high-quality dexterous hand has strict requirements for motor performance, including high-precision control, miniaturization and lightweight, high reliability and long life and other characteristics. The coreless DC motor, with its advantages of high-precision control, miniaturization and lightweight, high reliability and long service life, is the key to achieving high-precision and fast-response motion control for dexterous robots.
+
Industrial robot end-effector is an automated equipment component used for precision assembly, handling and other operations in industrial production. It is commonly used in various industrial production scenarios, and is a key component in realizing industrial automation production.As the core component of the industrial robot end-effector, the quality of the motor directly affects the use of the equipment. A good industrial robot end-effector requires motors with the following characteristics: high precision and rigidity, high load and high torque, high reliability and long life.
