•Stator and rotor innovative design, efficiency ≥82%, effectively reduce energy consumption；
•Internal structure design optimization improves NVH performance of the electronic water pump；
•The platform design of motor structure enables the same product structure to cover different power requirements of 40-100W；.
Data download Back to list
| Input Voltage |
13V DC |
|

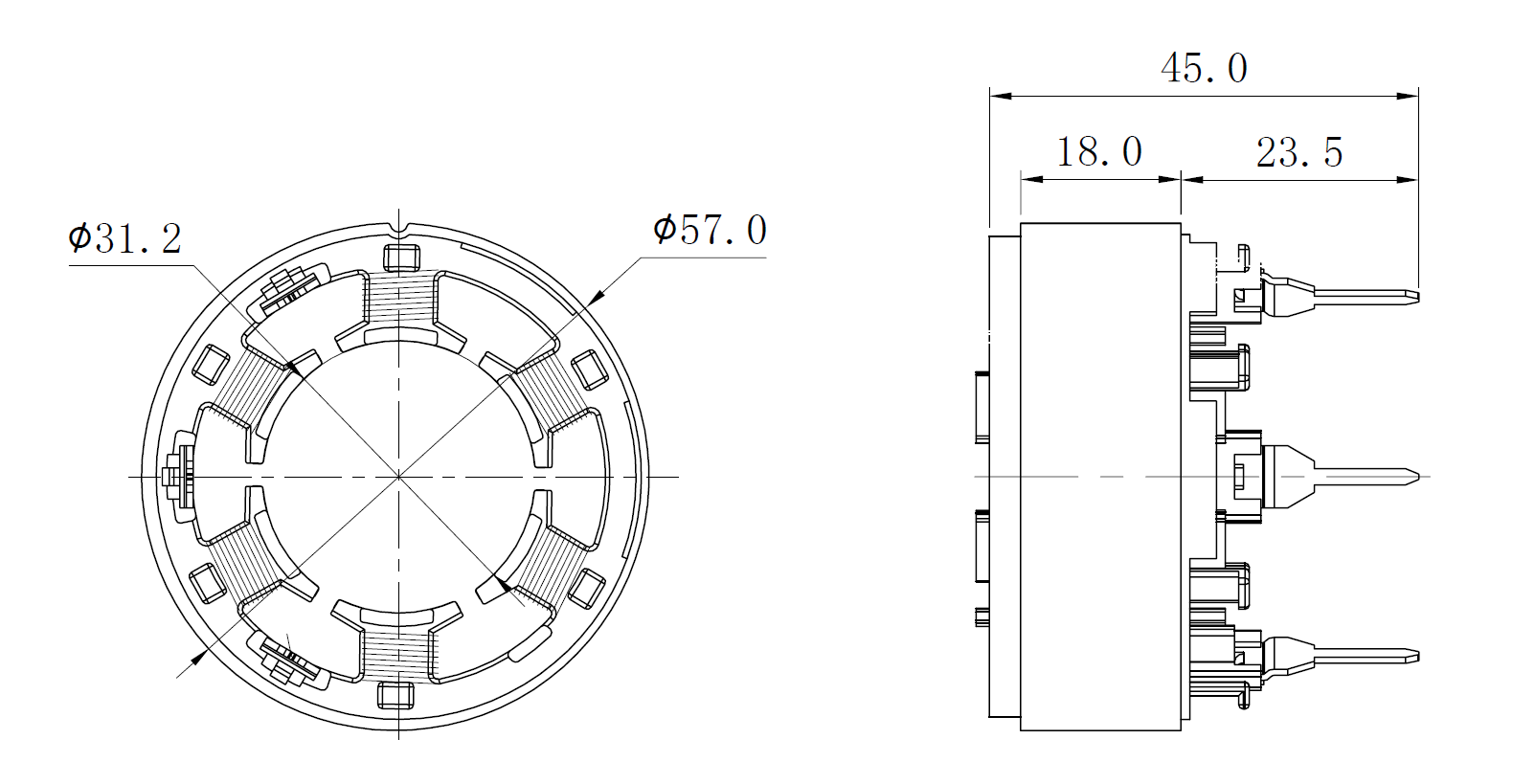

Dimensions(mm) |
Ф57x50.8L |
|
Shaft Diameter(mm) |
Ф10.5 |
|

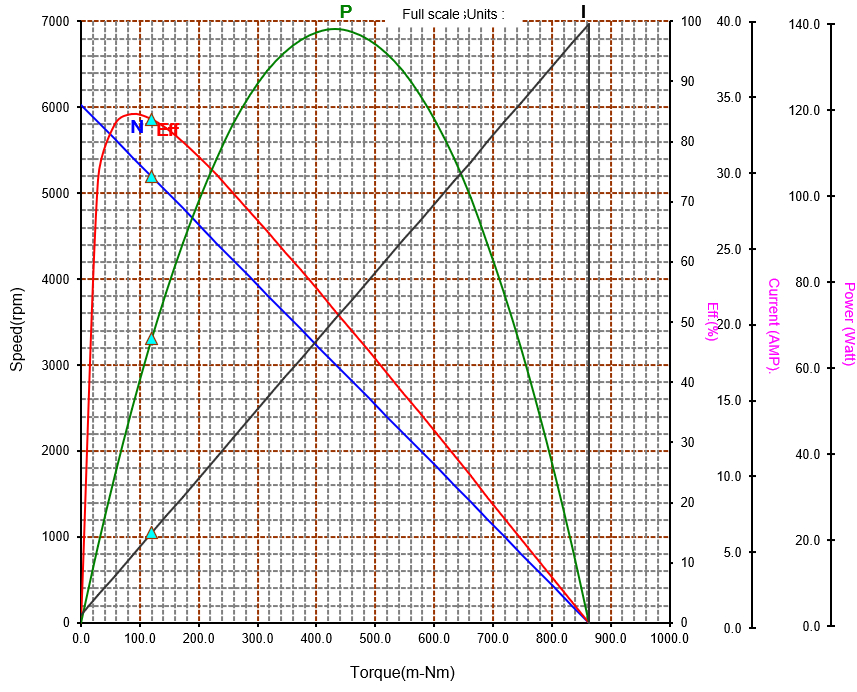

No Load Speed(rpm) |
6152 |
|
No Load Current(A) |
0.77 |
|
Nominal Speed(rpm) |
5190 |
|
Nominal Torque(Nm) |
0.12 |
|
Nominal Current |
5.99 |
|
Stall Torque(Nm) |
0.863 |
|
Stall Current(A) |
39.85 |
|
Maximum Output Power(W) |
136.2 |
|
Maximum Efficiency(%) |
84.66 |
|
Life（Typical） |
NA |
| Weight(g) |
270.9 |
|
Operating Temperature Range(°C) |
-40 to 125 |
|
Storage Temperature Range(°C) |
-40 to 125 |
As the wave of New Energy Vehicles (NEVs) sweeps across the globe, Thermal Management Systems (TMS) are becoming increasingly important as a key element in improving the range and safety of NEVs. In this rapidly developing field, liquid cooling solutions have become the backbone of thermal management systems for NEVs.
