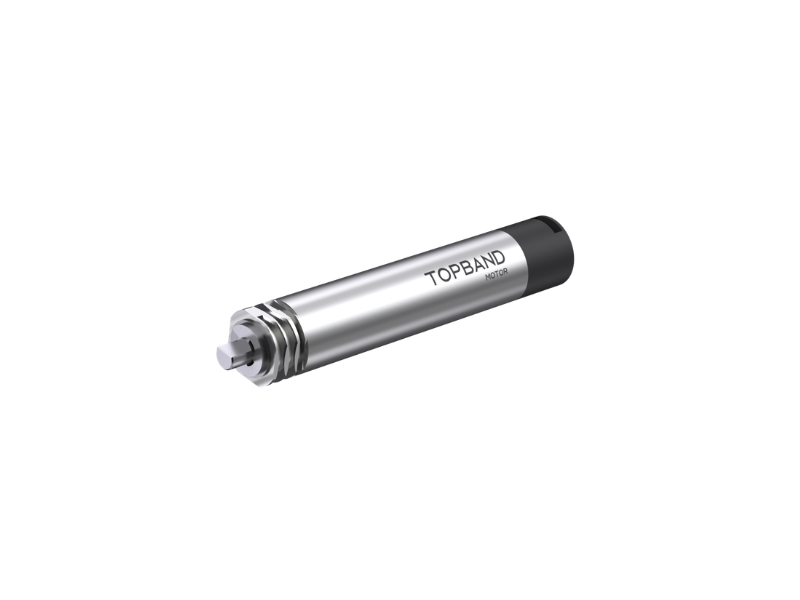

With its ultra-small size, extremely lightweight design, high speed, wide speed range, high dynamic response, extremely low rotor inertia, and short mechanical time constant, it can achieve millisecond-level start-stop and speed regulation, meeting the requirements of precision operation.
Data download Back to list
| Input Voltage | 12V DC |

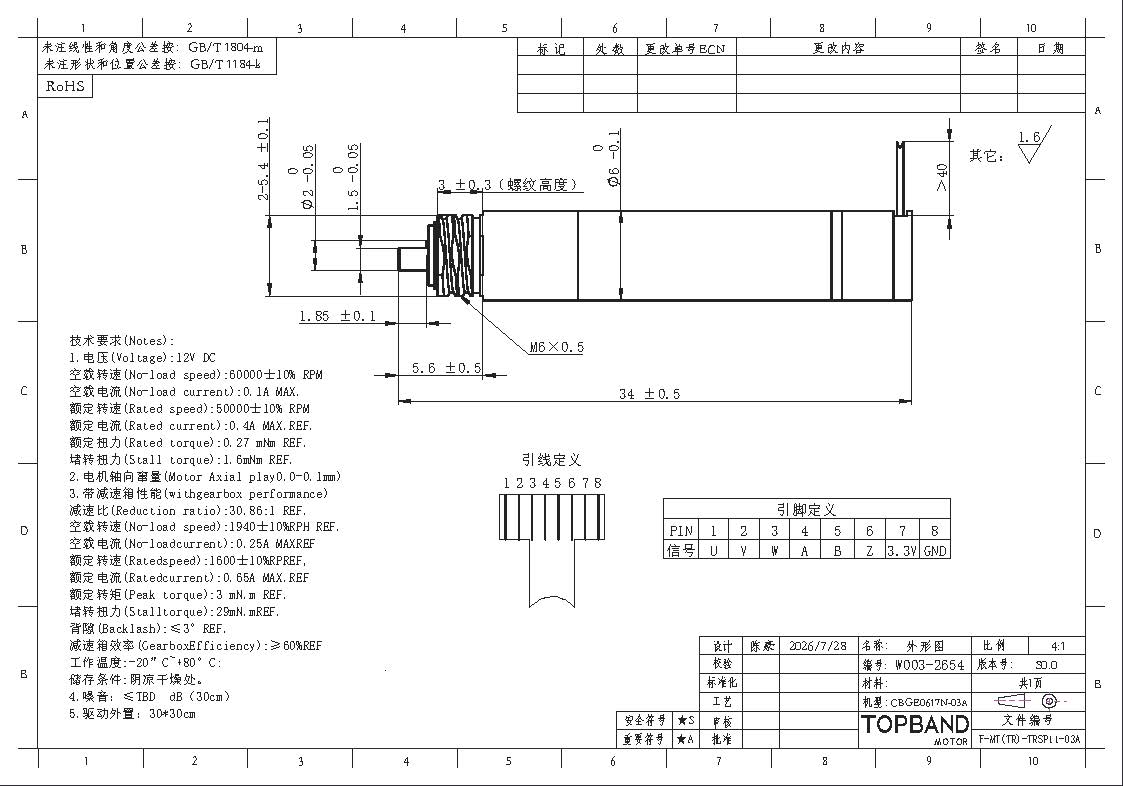

| Dimensions (mm) | φ6*24 |
| Shaft Diameter (mm) | 0.8 |

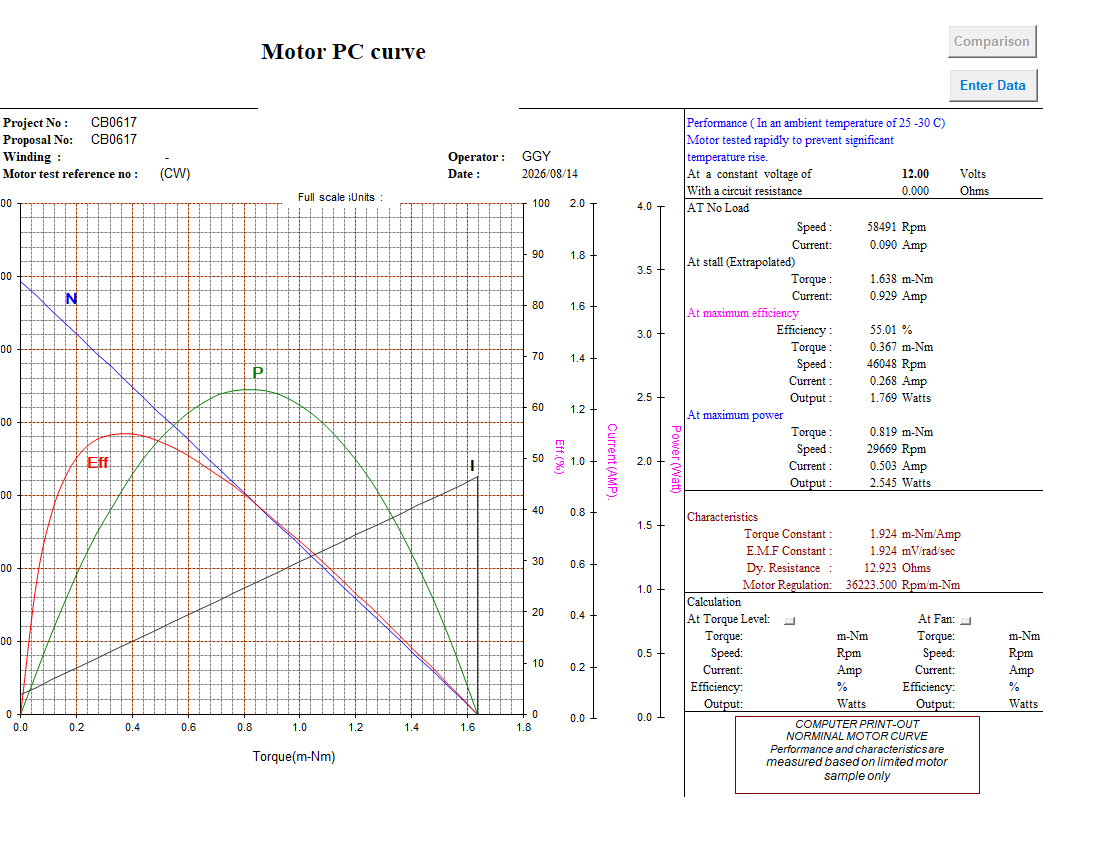

| No load speed (rpm) | 60000 |
| No load current (mA) | 100 |
| Nominal Speed (rpm) | 50000 |
| Nominal Torque (mNm) | 0.27 |
| Nominal Current (A) | 0.2 |
| Stall Torque (mNm) | 1.6 |
| Stall Current (A) | 0.9 |
| Maximum Output Power (W) | 1.7 |
| Maximum Efficiency (%) | 55 |
| Torque at Max Efficiency(mNm) | / |
| Speed at Max Efficiency(rpm) | / |
| Life(Typical) | / |
| Weight (g) | / |
| Operating Temperature Range (°C) | / |
| Storage Temperature Range (°C) | / |
