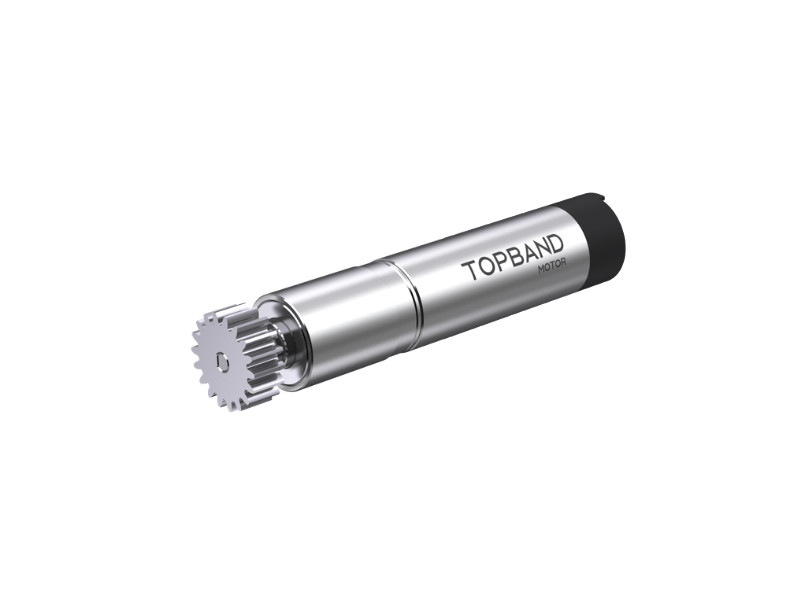

With its ultra-small size, extremely lightweight design, high speed, wide speed range, high dynamic response, extremely low rotor inertia, and short mechanical time constant, it can achieve millisecond-level start-stop and speed regulation, meeting the requirements of precision operation.
Data download Back to list
| Input Voltage | 12V DC |

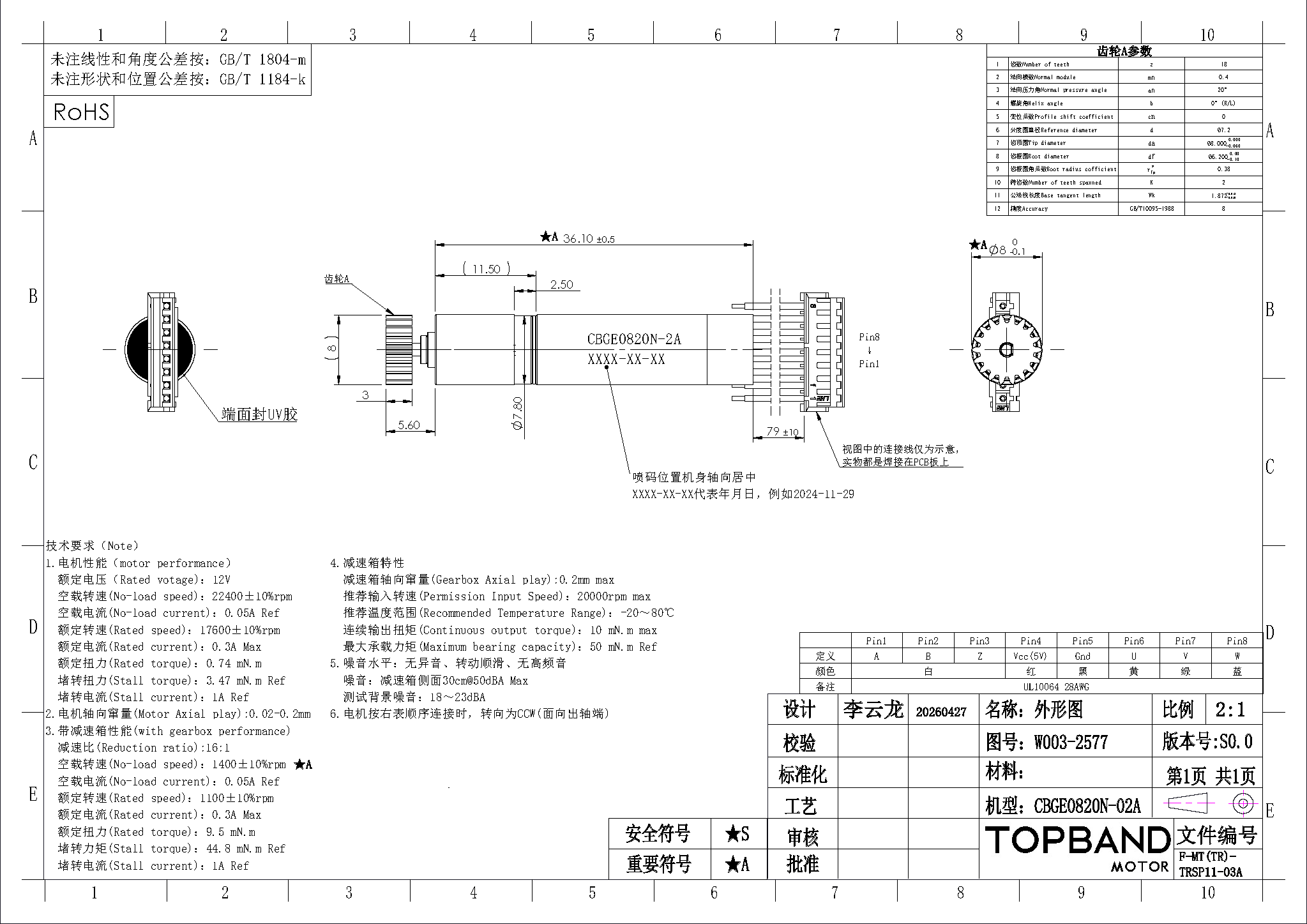

| Dimensions (mm) | 8*20 |
| Shaft Diameter (mm) | 1mm |
| No load speed (rpm) | 22400 |
| No load current (mA) | 30 |
| Nominal Speed (rpm) | 17600 |
| Nominal Torque (mNm) | 0.74 |
| Nominal Current (A) | 0.2 |
| Stall Torque (mNm) | 3.47 |
| Stall Current (A) | 1 |
| Maximum Output Power (W) | 1.68 |
| Maximum Efficiency (%) | 70.9 |
| Torque at Max Efficiency(mNm) | 0.74 |
| Speed at Max Efficiency(rpm) | 17600 |
| Life(Typical) | 2000H |
| Weight (g) | |
| Operating Temperature Range (°C) | -20~80℃ |
| Storage Temperature Range (°C) | 0~30℃ |
